Vehicle Fitment & Part Details

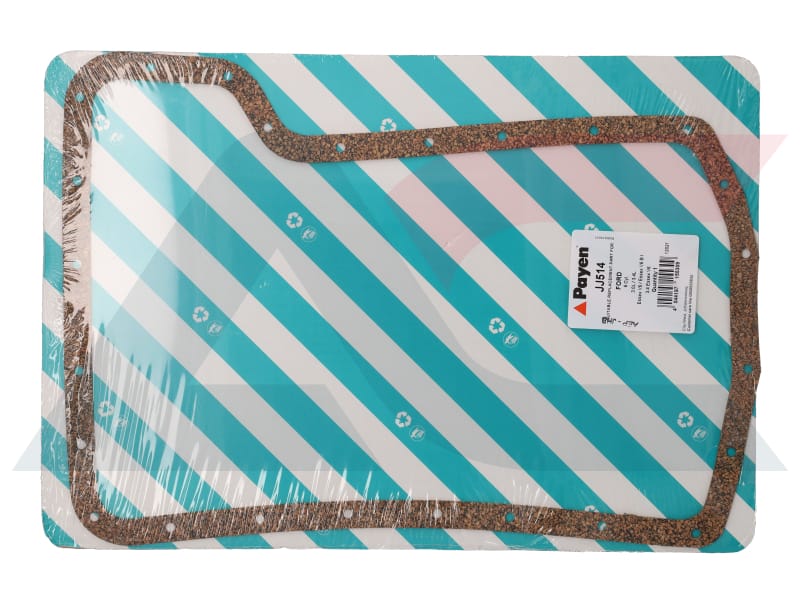

This Payen sump gasket (JJ514) is supplied for Ford Sierra 3.0 GLS GLX with the Essex V6 engine. It seals the oil sump pan to the engine block and is specifically for the later Essex V6 fitted with the aluminium tappet cover. Confirm compatibility by matching the listed fitment details and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- JJ514
- Component
- Sump Gasket
- Brand
- Payen
- Primary Fitment
- Ford Sierra 3.0 GLS GLX Essex V6 (1984-1989)
- Specs
- Suits later Essex V6 with aluminium tappet cover
Vehicle Fitment
| Make | Model | Engine | Years |
|---|---|---|---|
| Ford | Sierra 3.0 GLS GLX | Essex V6 | 1984-1989 |
| Ford | Sierra XR6 | V6 U/Rated | 1990-1992 |
| Ford | Sapphire 3.0 GLX | Essex V6 | 1991-1993 |
| Ford | Sapphire 3.0 GHIA | Essex V6 F.I. | 1991-1993 |
| Ford | Courier 3000 V6 | Essex V6 | 1990-1997 |
| Ford | Courier 3400 V6 | Essex V6 | 1997-2000 |
| Mazda | B3000 LWB & 4x4 | Essex V6 | 1986-1997 |
| Mazda | B3400 LDV | Essex V6 | 1997-2000 |
| Mazda | B3400 LDV 4x4 | Essex V6 | 1997-2001 |
Fitment Notes
- Always match vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
- JJ514 is for the later Essex V6 fitted with the aluminium tappet (valve) cover.
- For the earlier Essex V6 fitted with the steel valve cover, use part number JH401 instead.
- Inspect the tappet cover material before ordering to confirm the correct gasket.
Important: Engine components such as bearings, pistons, rings, valves, gaskets, and related parts must be installed only by a qualified, VAT-registered workshop using proper measuring and torque equipment. Ensure crankshaft journals are measured and polished, oil clearances verified, and assembly lube applied. Failures due to oil starvation, contamination, incorrect sizing, or improper torque are not manufacturing defects and are not covered under warranty. Always replace engine oil, filters, and gaskets during installation.
Engine Parts Return Policy Warning
Returns Policy Notice: Engine internal components (including bearings, pistons, rings, gaskets, valves, etc.) are non-returnable once the sealed packaging has been opened. Returns are only accepted if the incorrect part was supplied and the item remains sealed, unused, and in original condition. Opened, fitted, dirty, or marked parts cannot be resold and are not eligible for refund or exchange. Please verify engine code, bore/size, and bearing grade before opening any packaging.
Installation / Use / Maintenance Tips
- Confirm whether the engine has the aluminium or steel tappet cover before fitting; the wrong gasket will leak.
- Clean both mating surfaces thoroughly and remove all traces of the old gasket and sealant.
- Inspect the sump pan flange for distortion and straighten if needed before refitting.
- Torque sump bolts evenly in a cross pattern to the manufacturer's specification.
- Refill with fresh engine oil and check for leaks after the first heat cycle.
Common Questions
Will this sump gasket fit my Ford Sierra Essex V6?
This part (JJ514) is listed for the fitments shown on this page. It suits the later Essex V6 with the aluminium tappet cover. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What brand is this part?
This listing is for Payen sump gasket.
How do I confirm fitment if there are multiple variants?
Check whether your engine has the aluminium tappet cover (use JJ514) or the steel valve cover (use JH401 instead). Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
