Vehicle Compatibility

• Land Rover Freelander 1.8 K18 1998 2006
• Land Rover Freelander 2.0 20T2N 1998 2000
• Land Rover Freelander 2.0 TD4 M47D20 2000 2006
• Land Rover Freelander 2.5 KV6 2001 2006

Specifications

• Fitting Position: Rear Axle
• Supplementary Article Info: Without ABS Sensor Ring
• Supplementary Article Info: Without Wheel Bearing

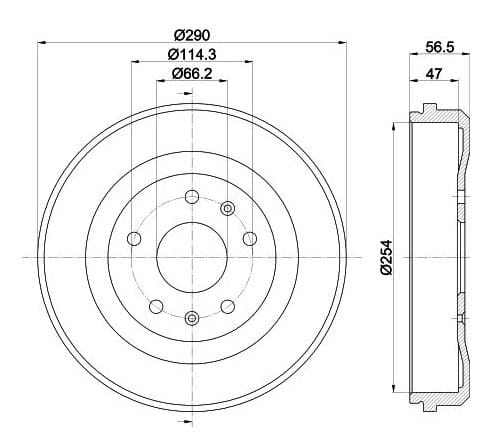

• Drum Inner Diameter: 254 mm
• Outer Brake Drum Diameter: 290 mm
• Bore Diameter: 66 mm
• Bolt Hole Circle Diameter: 114.3 mm
• Total Brake Drum Height: 56.5 mm
• Inner Brake Drum Height: 46.5 mm
• Width: 47 mm
• Thickness: 56 mm
• Max Brake Drum Reboring Dimension: 256 mm
• Rim Hole Number: 5 (Some references list 7 holes, confirm before fitment)
• Number Of Mounting Bores: 2

OE Numbers: HRC2712, SDC100110, SDC100130

Market Part Numbers: ALFA SD4899, Ferodo FDR329267, Febi 171125

Features

• Rear brake drum supplied without ABS sensor ring
• Rear brake drum supplied without wheel bearing
• Designed for correct hub centering with 66 mm bore
• Suitable for reboring up to 256 mm where permitted by workshop procedure

Why Buy From Us

• Local South African stock for faster turnaround
• 12 month warranty cover on manufacturing defects
• Fitment support available if you share VIN and vehicle details
• Nationwide delivery options across major centres

Installation & Maintenance Tips

• Confirm drum inner diameter, PCD, bore diameter, and hole count before installation
• Clean the hub face and remove rust to prevent runout and brake vibration
• Replace brake shoes if contaminated or worn, and inspect wheel cylinders for leaks
• Torque wheel nuts to manufacturer specification and recheck after a short bedding period
• If machining is required, do not exceed the maximum reboring dimension
