Vehicle Compatibility

• Compatible with most vehicles and light trucks with an OBDII port and supported protocol.
• Typical coverage guidance: US vehicles after 1996, EU vehicles after 2002, Asia vehicles after 2008.
• For diesel vehicles, confirm the vehicle supports one of the listed OBDII protocols before ordering/using.
• Not supported: ABS, SRS (airbag), and TPMS system diagnostics.

DOWNLOAD USER MANUAL

Specifications

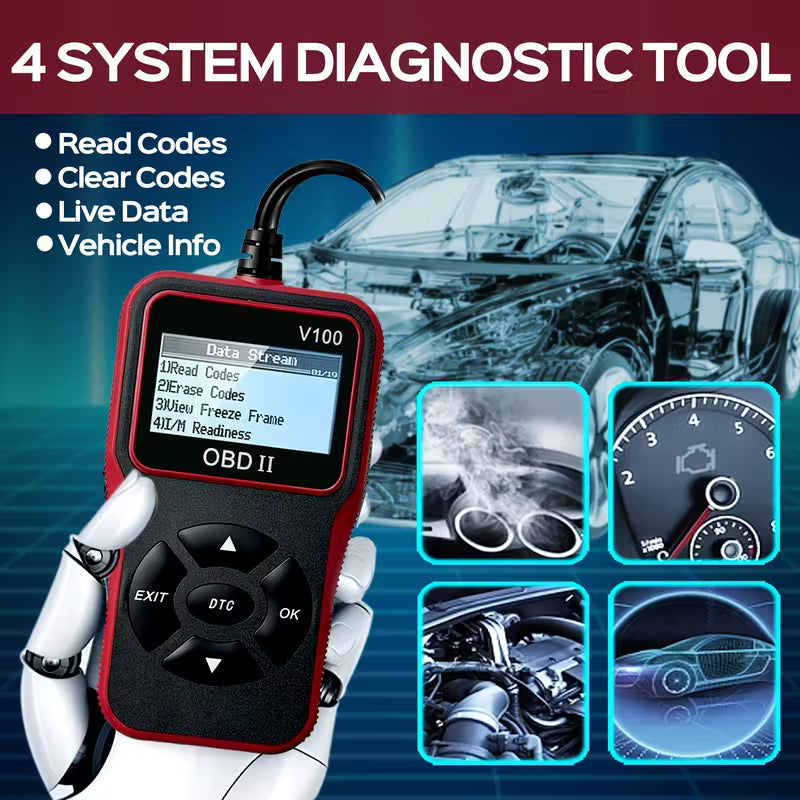

• Type: LCD Display OBD2 Diagnostic Scanner (V100)
• Colour: Black and Red
• Power: USB powered via vehicle OBDII port (5V supply through the port)

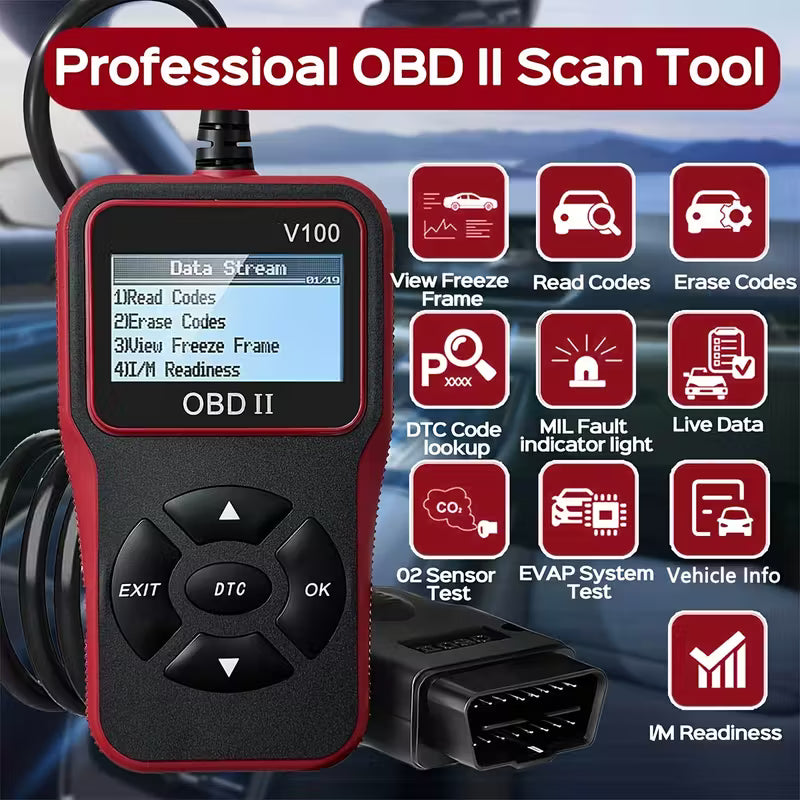

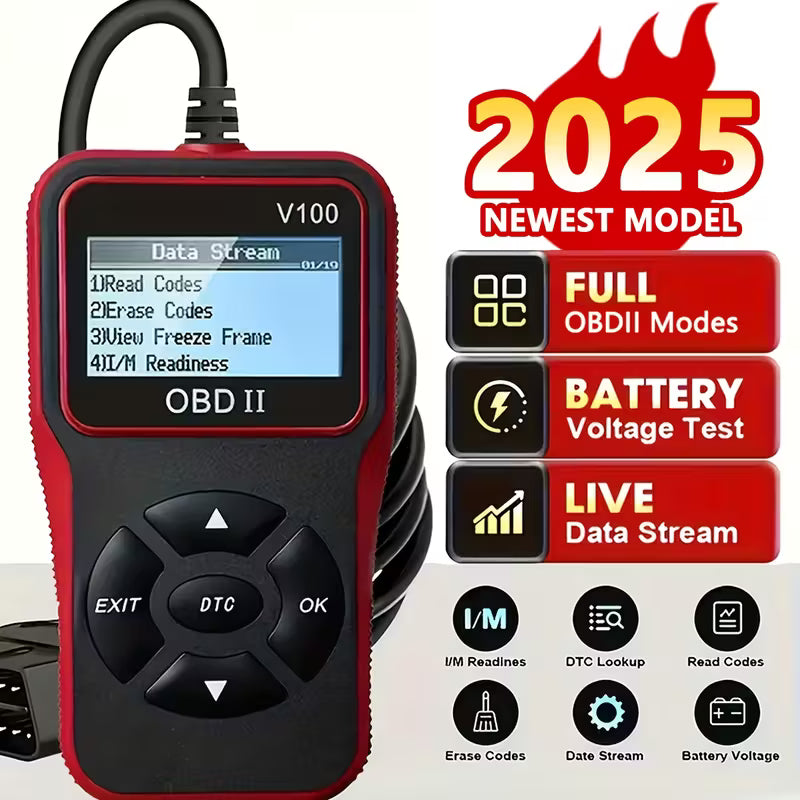

• Functions: Read codes, erase codes, live data stream, freeze frame, vehicle information, I/M readiness, MIL status check, DTC code lookup, O2 sensor test, EVAP system test, battery voltage display
• Supported protocols:
  • SAE J1850 PWM (41.6 Kbaud)
  • SAE J1850 VPW (10.4 Kbaud)
  • ISO9141-2 (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11 bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29 bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11 bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29 bit ID, 250 Kbaud)
• Languages: German, Dutch, English, Spanish, French, Italian, Russian, Chinese, Japanese

Features

• Reads and clears engine fault codes (Check Engine Light diagnostics)
• Live data stream to view running sensor values and basic engine parameters
• Freeze frame viewing to help identify what was happening when a fault was logged
• I/M readiness status checks for emissions readiness monitoring
• Battery voltage display for quick charging-system visibility (voltage reading via the OBD port)
• Compact handheld design for glovebox storage and quick plug-and-play use

Why Buy From Us

• Local South African stock for fast nationwide delivery
• 12-month warranty (subject to normal terms of use)
• Fitting and compatibility support to help confirm OBDII protocol and basic setup

Installation & Maintenance Tips

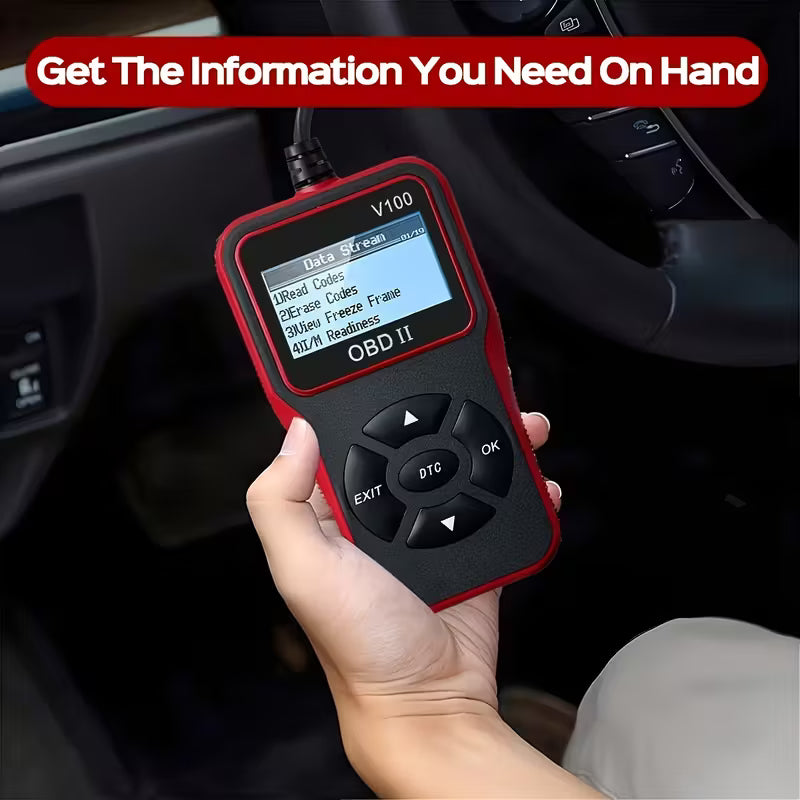

• Locate the vehicle’s OBDII port (commonly under the dashboard) and plug the scanner in firmly.
• Turn ignition on (engine off) first to read codes; start the engine only when checking live data.
• Record stored codes and freeze-frame details before clearing codes, as clearing removes diagnostic history.
• If using on a diesel vehicle, verify the supported OBDII protocol in the vehicle documentation or via a compatibility check.
• Note: This tool is for engine/OBDII diagnostics only and will not read ABS, airbag, or TPMS faults.
