Description
Vehicle Compatibility

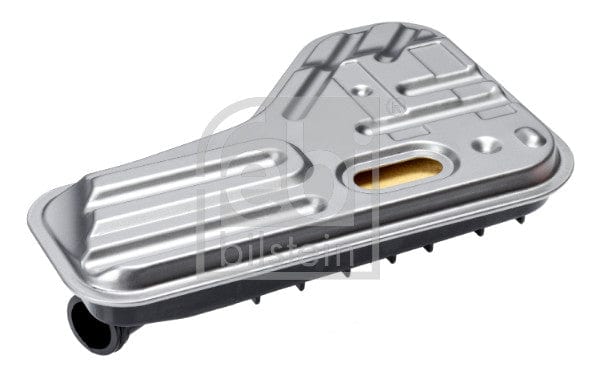

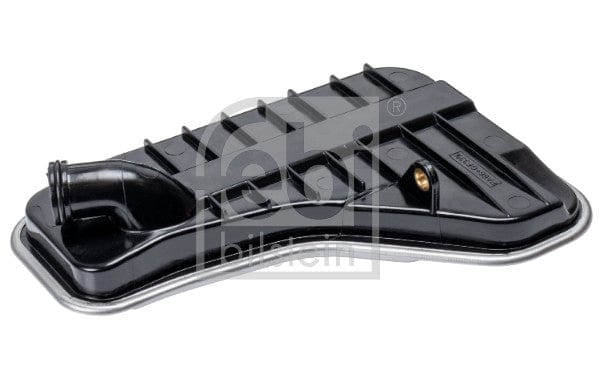

This DSG gearbox oil pan with filter suits VAG vehicles using the 6 speed dual clutch 02E transmission with OE number 02E 325 429 D / 2E 325 429 D. It is commonly fitted to popular VW, Audi, Seat and Skoda models.
- Audi A3 1.4 TFSI and 1.8 TFSI CAXC, CMBA, CDAA, BYT including Sportback models
- Audi A3 1.9 TDI and 2.0 TDI BLS, BXE, BKD, CBAB, CFFB, BMM, CRFC including Sportback
- Audi A3 2.0 TFSI and 3.2 V6 Quattro AXX, CAWB, BDB, BUB and related engines
- Audi S3 2.0 TFSI BZC, CDLC hatch and Sportback
- Audi TT 1.8 TFSI and 2.0 TFSI including TTS and 3.2 V6 Quattro BWA, BPY, CESA, CETA, CDLA, CDMA, BHE, BUB
- Seat Leon and Altea 2.0 TDI and 2.0 TFSI BMM, BWA, BWJ, CDLD
- VW Golf 5 1.9 TDI, 2.0 GTI, 2.0 TDI and 3.2 R32 4Motion BKC, BXE, AXX, BWA, CAWB, BKD, BUB
- VW Golf 6 1.4 TSI Comfortline, Trendline, Highline and 2.0 GTI, 2.0 TSI R CAXA, CAVD, CCZB, CDLG, CBAB, CFFB, CJAA, CDLC, CRZA
- VW Golf 7 1.4 TFSI CPTA, CHPA and 2.0 TDI CRLB, MB, BC
- VW Jetta 5 1.9 TDI and 2.0 TFSI / TDI BKC, BXE, BWA, BPY, BMN, CEGA
- VW Jetta 6 2.0 TDI CFFB, CFHC
- VW Passat and Passat CC 1.9 TDI, 2.0 TFSI and 2.0 TDI BKC, BLS, AXX, BWA, BP, BKP, CBAB, CBDC, CFFB, CAWB, CCZA, AXZ
- VW CC 2.0 TDI and 2.0 TSI plus 3.6 FSI CFGB, CLLA, CCZB, BWS
- VW Scirocco 1.4 and 2.0 TSI including DSG CAVD, CAWB, CCZB, CDLC
- VW Tiguan 1.4 TSI and 2.0 TDI BWK, CAVA, CAXA, CAVD, CBAB, CFFB, CFFD, CCZB
- VW Touran 1.4 TSI, 1.9 TDI and 2.0 TDI BMY, CAVC, BKC, BLS, BX, BKD, BMM, CLCA
- VW Caddy 1.9 and 2.0 TDI BJB, BLS, CFHF, CLCA, CFHC
- VW New Beetle 1.4 TSI CAVD, CNWA and related engines
- Skoda and Seat models using 02E 325 429 D 6 speed DSG sump (confirm by OE number)
Always match your gearbox code and OE number 02E 325 429 D before ordering to confirm that this DSG gearbox oil pan with filter is correct for your vehicle.
Specifications
- Part type: Gearbox oil pan with filter assembly
- Transmission type: 6 speed dual clutch DSG transmission
- Filter type: Screen filter integrated in pan

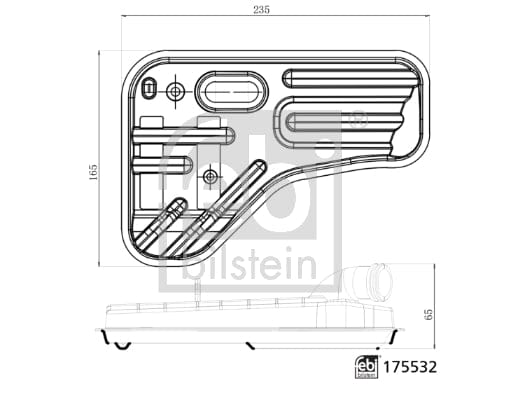

- Length: 235 mm
- Width: 165 mm
- Height: 65 mm
- VAG transmission family: 02E DSG applications
- OE number cross reference: 02E 325 429 D, 2E 325 429 D
- SKU: 175532
OE Numbers
- Audi: 02E 325 429 D, 2E 325 429 D
- Seat: 02E 325 429 D, 2E 325 429 D
- Skoda: 02E 325 429 D, 2E 325 429 D
- VW: 02E 325 429 D, 2E 325 429 D
Features
- Complete DSG gearbox oil pan with filter and built in screen filter for 6 speed 02E units
- Direct replacement design to match the original VAG DSG filter pan assembly
- Helps maintain clean oil flow to protect DSG clutches and mechatronics components
- Correct shape and mounting pattern for factory fit on VW, Audi, Seat and Skoda models listed
- Suited for routine DSG service intervals and preventative maintenance on standard or tuned vehicles
- Ideal when the original filter pan is damaged, corroded or contaminated with excessive metal particles
Why Buy From Us
- Local South African stock focused on VW and Audi DSG transmission service parts
- Fast courier delivery to Johannesburg, Pretoria, Cape Town, Durban and surrounding areas
- Parts matched to OE numbers and transmission codes for accurate DSG fitment
- Support team available to help confirm compatibility using your VIN and gearbox details
- Secure online checkout with trusted South African payment options
Trusted by thousands of South African drivers for quality and durability on VAG service and replacement parts.
Installation & Maintenance Tips
- Allow the gearbox to cool and safely support the vehicle before removing the old DSG filter pan.
- Drain the DSG oil completely and dispose of the used fluid in line with local regulations.
- Inspect and clean any magnets or residues from the old pan to check for unusual metal build up.
- Replace pan bolts and sealing components where required and clean the mating surfaces before fitting the new gearbox oil pan with filter.
- Always refill with the correct 6 speed DSG transmission fluid that meets the required VW specification, for example using our VW Audi Multi D 6 speed DSG gearbox oil .
- Follow the manufacturer procedure for DSG oil level and temperature adjustment, using diagnostic equipment where needed.
- After installation, check carefully for leaks and road test the vehicle to ensure smooth DSG operation.
- If unsure about the procedure, have the work done by a workshop experienced with VW and Audi DSG transmissions.
