Alternator voltage regulator for Bosch alternators on select Isuzu applications where the original regulator is an internal type with a round plug using a 3 pin S L IG layout (plug type IDSense IG L), and an A Circuit control strategy with IR/IF internal regulator internal fan configuration. Confirm by alternator label, round plug format and OE cross reference before ordering.
Listed Applications
- Isuzu: 2.5L Diesel; 2.8L Diesel; KB250D; KB280D
- Toyota: Toyota Industrial (applications using a matching regulator and OE references listed below)
OE Numbers By Brand
- Isuzu: 8943426800
- Toyota: 27000-64040; 2770064040; 2770064110
- Hino: 277001740
Specifications
- Reference: REG6011
- Part Type: Alternator Voltage Regulator
- Manufacturer: Bosch
- System Voltage: 12V
- Regulated Voltage (Set Point): 14.4V (VS=14.4V)
- Charging Voltage: 14.4V
- Operating Voltage: 14V
- Circuit: A Circuit
- Type: IR/IF (Internal Regulator / Internal Fan)

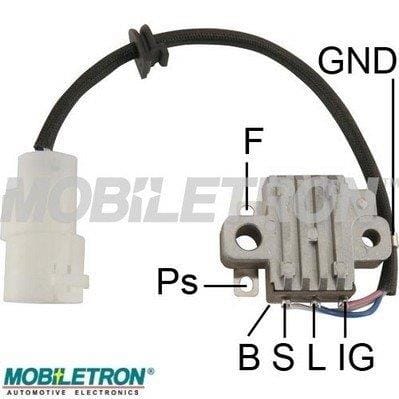

- Connector / Pins: 3 Pin (S L IG)
- Plug Type: IDSense IG L
- Specification: 2.5 Sec. LRC
- Active Lamp: Yes
- Short Circuit Protection: Yes
- OE Numbers: Isuzu 8943426800; Toyota 27000-64040, 2770064040, 2770064110; Hino 277001740
Features
- Regulates alternator field current to maintain stable charging on compatible Bosch Isuzu alternators
- 14.4V charging specification for matching 12V diesel electrical systems
- Round plug 3 pin S L IG layout with IDSense IG L plug type to match the correct regulator interface
- A Circuit control strategy and IR/IF internal regulator internal fan design for the specified alternator configuration
- Active lamp function with short circuit protection for supported charging circuits
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels, plug photos and OE number matching
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or regulator replacement
- Confirm the alternator is Bosch and the regulator uses a round plug with 3 pin S L IG layout before fitting
- Inspect brushes, slip rings and rotor condition while the alternator is open and replace worn parts where required
- Ensure battery terminals and earth connections are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage at idle and under load and confirm warning lamp behaviour
- If you are unsure about alternator repairs, have the regulator fitted and tested by a qualified auto electrician
Important: Product information, kit contents and compatibility are provided as a guide and may contain errors or omissions. Please verify that this part and any included components are correct for your vehicle before installation. For full details see our Website Disclaimer (Errors & Omissions).
