Description
Vehicle Fitment & Part Details

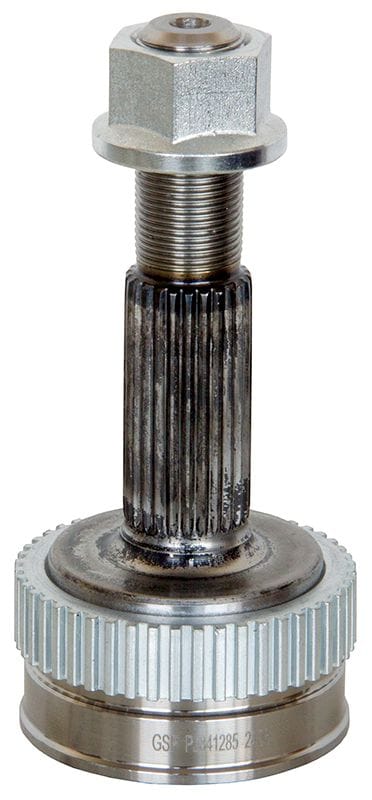

This rear outer CV joint is designed for the Nissan Qashqai (J10, J11), Nissan X-Trail (T31, T32), and Renault Koleos (HY, HC). Features a 48-tooth ABS ring and lock ring. Confirm compatibility by matching the listed fitment details and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- PJ841285
- Component
- Outer CV Joint
- Position
- Rear Axle Left and Right
- Brand
- Partquip
- Primary Fitment
- Nissan Qashqai I (J10) 1.6 dCi R9M (2011–2013)
- Specs
- External toothing: 25 | Internal toothing: 24 | Seal diameter: 56 mm | Length: 149 mm | Thread: M22x1.5 | ABS ring: 48 teeth | Includes lock ring
Product Specifications
| Specification | Value |
|---|---|
| External Toothing (Wheel Side) | 25 |
| Internal Toothing (Wheel Side) | 24 |
| Seal Ring Diameter | 56 mm |
| Length | 149 mm |
| Thread Size | M22x1.5 |
| ABS Ring Teeth | 48 |
| Supplementary Info | Lock ring included |
Vehicle Fitment
Includes 35 supplied applications.
View Full Vehicle Fitment (35 applications)
| Make | Model | Chassis / Platform | Years | Engine | Power |
|---|---|---|---|---|---|
| Nissan | Qashqai I | J10 | 2011–2013 | 1.6 dCi All-wheel Drive R9M | 96kW/130PS |
| Nissan | Qashqai I | J10 | 2007–2013 | 2.0 dCi All-wheel Drive M9R; M1D | 110kW/150PS |
| Nissan | Qashqai I | J10 | 2007–2013 | 2.0 All-wheel Drive MR20DE | 104kW/141PS |
| Nissan | Qashqai I | J10 | 2010–2014 | 2.0 All-wheel Drive MR20DE | 103kW/140PS |
| Nissan | Qashqai II | J11 | 2013–02 | 1.6 dCi ALL MODE 4x4-i R9M | 96kW/130PS |
| Nissan | Qashqai II | J11 | 2013–01 | .0 ALL MODE 4x4-i (J11R) MR20DD | 106kW/144PS |
| Nissan | Qashqai II | J11 | 2019– | .7 dCi ALL MODE 4x4-i R9N 401 | 110kW/150PS |
| Nissan | Qashqai I Van | J10 | 2013–2014 | 2.0 All-wheel Drive MR20DE | 104kW/141PS |
| Nissan | Qashqai I Van | J10 | 2013–2014 | 1.6 dCi All-wheel Drive R9M | 96kW/131PS |
| Nissan | Qashqai I Van | J10 | 2013–2014 | 2.0 dCi All-wheel Drive M9R | 110kW/150PS |
| Nissan | X-Trail II | T31 | 2007–2013 | 2.0 dCi 4x4 M9R 760 | 127kW/173PS |
| Nissan | X-Trail II | T31 | 2007–2013 | 2.0 dCi 4x4 M9R | 110kW/150PS |
| Nissan | X-Trail II | T31 | 2007–2013 | 2.0 4x4 MR20DE | 104kW/141PS |
| Nissan | X-Trail II | T31 | 2008–2013 | 2.0 4x4 MR20DE | 103kW/140PS |
| Nissan | X-Trail II | T31 | 2007–2013 | 2.0 4x4 MR20DE | 101kW/137PS |
| Nissan | X-Trail II | T31 | 2007–2013 | 2.5 4x4 QR25DE | 124kW/169PS |
| Nissan | X-Trail II | T31 | 2007–2014 | 2.5 4x4 QR25DE | 132kW/180PS |
| Nissan | X-Trail II | T31 | 2009–2013 | 2.0 dCi 4x4 M9R 760 | 130kW/177PS |
| Nissan | X-Trail III | T32 | 2014–02 | 1.6 dCi ALL MODE 4x4-i (NT32) R9M | 96kW/130PS |
| Nissan | X-Trail III | T32 | 2013–02 | .5 ALL MODE 4x4-i (NT32) QR25DE | 126kW/171PS |
| Nissan | X-Trail III | T32 | 2016–02 | .0 dCi ALL MODE 4x4-i (NT32) M9R | 130kW/177PS |
| Nissan | X-Trail III | T32 | 2014–01 | .0 ALL MODE 4x4-i (NT32) MR20DD | 106kW/144PS |
| Nissan | X-Trail III | T32 | 2019–01 | .7 dCi ALL MODE 4x4-i R9N | 110kW/150PS |
| Nissan | X-Trail III | T32 | 2019–01 | .7 dCi ALL MODE 4x4-i R9N | 96kW/131PS |
| Nissan | X-Trail III | T32 | 2019– | .7 dCi ALL MODE 4x4-i R9N | 120kW/163PS |
| Nissan | X-Trail II Van | T31 | 2013–2014 | dCi 4x4 M9R | 110kW/150PS |
| Nissan | X-Trail II Van | T31 | 2013–2014 | dCi 4x4 M9R 760 | 127kW/173PS |
| Nissan | X-Trail III Van | T32 | 2014– | dCi 4x4 R9M | 96kW/131PS |
| Renault | Koleos I | HY | 2008–02 | 2.0 dCi 4x4 (HY0K) M9R 855; M9R 856; M9R 865; M9R 866; M9R 834; M9R 833; M9R 835; M9R 836; M9R 838; M9R 832; M9R 862; M9R 850 | 110kW/150PS |
| Renault | Koleos I | HY | 2008–02 | .0 dCi 4x4 (HY0B) M9R 830 | 127kW/173PS |
| Renault | Koleos I | HY | 2008– | .5 4x4 (HY0C, HY0N) 2TR 700; 2TR 703; 2TR 702 | 126kW/171PS |
| Renault | Koleos II | HC | 2016–02 | 2.0 dCi 175 4WD M9R 868 | 130kW/177PS |
| Renault | Koleos II | HC | 2019–02 | .0 BLUE dCi 190 4WD (HCAN) M9R 730 | 140kW/190PS |
| Renault | Koleos II | HC | 2020–02 | .0 BLUE DCI 185 4WD (HCAN) M9R 716 | 135kW/184PS |
| Renault | Koleos II | HC | 2016– | .5 Sce 4WD 2TR707 | 126kW/171PS |
Fitment Notes
- Always match vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
Important: With CV joints and driveshafts, a VIN check can still return multiple possible variants within the same model range. First confirm whether you need an inner CV joint, outer CV joint, CV boot, or complete driveshaft. Then match the removed unit by outer spline count, inner spline count, seal size (mm), outer diameter (mm), groove position, overall length (mm), and ABS ring tooth count where applicable. The only reliable way to confirm the correct part is to physically inspect and measure the old unit and match these specifications before ordering.
Returns Notice: CV joints, driveshafts, and boots that are greasy or incomplete are not returnable.
Installation / Use / Maintenance Tips
- Compare the new CV joint to the removed unit before installation to confirm spline count, seal diameter, outer diameter, groove position, and overall length match.
- Clean mating surfaces, spline shafts, and ABS ring seating areas before fitting the new part.
- Replace related seals, clips, CV boot, and one-time-use hardware where applicable.
- Follow the vehicle manufacturer's workshop procedure during installation, including correct greasing of the joint.
- After installation, check for correct operation, abnormal noise, and confirm there are no leaks or vibration.
Common Questions
Will this rear outer CV joint fit my Nissan Qashqai?
This part (PJ841285) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What brand is this part?
This listing is for Partquip rear outer CV joint.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
Important: Product information, kit contents and compatibility are provided as a guide and may contain errors or omissions. Please verify that this part and any included components are correct for your vehicle before installation. For full details see our Website Disclaimer (Errors & Omissions).
