Description
Vehicle Compatibility
- Fiat Multipla 1.6 Activ 182B6.000 Petrol 2004 to 2009
- Fiat Palio 1.6 EL/EH 178B3.000 Petrol 2000 to 2005
- Fiat Palio II 1.6 178B3.000 Petrol 2005 to 2008
- Fiat Stilo 1.6i Multi Wagon 182B6.000 Petrol 2003 to 2007
- Fiat Strada 1.6 EL 178D2.011 Petrol 2005 to 2010

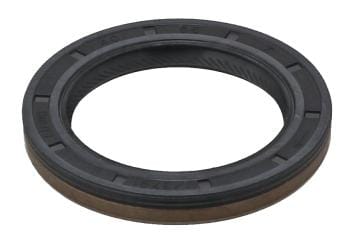

The MS32500 front main crankshaft oil seal is specified for the Fiat 1.6 petrol engines listed above. It fits on the frontal side of the crankshaft and should always be matched carefully to the correct engine code and dimensions before installation, particularly on South African models where variations are common.
Specifications
- Part type: Front main crankshaft oil seal
- SKU: MS32500
- Fitting position: Frontal sided (front crankshaft seal)
- Material: FPM (fluoride rubber)
- Inner diameter: 40 mm
- Outer diameter: 56 mm
- Height: 7 mm
- Radial shaft seal design: AB
- Swirl type: Right-hand twist
- Primary engine codes: 178C7.098, 178D2.011, 178B3.000, 182B6.000
- OE numbers (cross reference): Alfa Romeo 40004950; Fiat 40004950; Lancia 40004950
- Vehicle families: Fiat Palio, Palio II, Strada, Multipla, Stilo 1.6 applications listed above
All dimensional and material details are based on the catalog information for these Fiat engines. Confirm that the removed seal matches these specifications and OE numbers before opening the MS32500 packaging or attempting fitment.
Features
- Designed as a front crank seal solution for common Fiat 1.6 engine codes in Palio, Strada, Multipla and Stilo.
- High quality FPM rubber to support operation with the specified engine oils and temperatures.
- Right-hand twist and AB profile to mirror the original seal where MS32500 is listed as a replacement.
- Supports reliable oil sealing at the front of the crankshaft when used as part of a complete engine repair.
- Suitable for professional workshops and rebuilders handling South African Fiat passenger vehicles.
Trusted by thousands of South African drivers for quality and durability when fitted correctly and used with proper engine maintenance.
Why Buy From Us
- Local South African stock of key engine sealing components for Fiat 1.6 models.
- 12 month warranty on the MS32500 crankshaft seal, subject to correct installation and normal use.
- We assist with catalog checks – send us your VIN, engine code and OE reference for verification before purchase.
- Specialised focus on the Fiat Palio, Strada, Multipla and Stilo ranges commonly found in South Africa.
- Nationwide delivery throughout South Africa, including Cape Town, Johannesburg, Pretoria, Durban, Gqeberha and many other areas.
Installation & Maintenance Tips
- Always have the MS32500 front crankshaft seal installed by a qualified technician or engine builder.
- Measure and compare the new seal’s inner and outer diameter, thickness and design with the original before installation.
- Ensure the crank nose and housing bore are clean, smooth and free of burrs or deep grooves.
- Use a suitable driver or press tool to insert the seal straight and to the correct depth as per workshop information.
- Apply clean engine oil on the sealing lip if recommended by the manufacturer and avoid over-lubricating the outer diameter.
- Inspect crankcase ventilation and breather systems to avoid excess crankcase pressure that may cause leaks.
- After reassembly, check for oil leaks and confirm that the engine oil level and grade match Fiat specifications.
These installation notes are for guidance only. Always follow the official Fiat repair procedures for your exact engine and model.
Engine Parts Installation Warning
Front crankshaft seals and other internal engine components must be fitted only by suitably trained professionals using correct tools and data. Incorrect positioning, damage during installation, contaminated surfaces or failure to observe the manufacturer’s procedures can lead to leakage, premature seal failure and potential engine damage.
The installer is responsible for confirming engine code, OE numbers and compatibility with the original seal, as well as observing all torque specifications and assembly instructions supplied by the vehicle manufacturer.
