Description
Water Pump for Audi A1 A3 A4 A5 Q5 TT Volkswagen Golf Porsche Macan Two Options - With or Without housing
This is a combined multi-option listing for a water pump. Both options share the same supplied Audi, Volkswagen, and Porsche fitment base, but the parts differ in housing and sensor configuration. Match the correct option by part type, OE reference, and vehicle application before ordering.
Key Details
- Component
- Water Pump
- Listing Type
- Combined multi-option listing
- Available Options
- Without housing and with housing
- Primary Fitment Group
- Audi A1, A3, A4, A5, Q5, TT; Volkswagen Golf; Porsche Macan
Product Options
| Option | Part Number | Description | Key Specs |
|---|---|---|---|

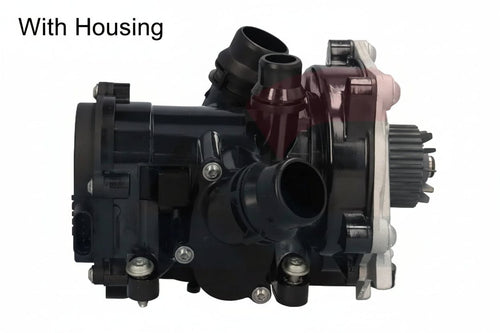

| Option 1 | WP83085X | Water pump with housing, with sensor, with cover, thermostat fitted in water pump | 29 teeth, 5 blades/vanes, pulley diameter 44,9 mm, impeller diameter 65 mm, metal impeller |
| Option 2 | PA1246 | Water pump without housing | 29 teeth, mechanical, 5 blades/vanes, pulley diameter 44,9 mm, impeller diameter 65 mm, metal impeller |
OEM Reference Numbers
Option 1 - WP83085X
- Audi: 06L 121 111M, 06L 121 111J, 06L 121 111F, 06L 121 111, 06L 121 005A, 06L 121 111K, 06L 121 111G, 06L 121 111B, 06L 121 011B, 06K 121 011, 06L 121 111L, 06L 121 111H, 06L 121 111E, 06L 121 011D, 06K 121 011D
- VW: 06K 121 011, 06L 121 131, 06L 121 111K, 06L 121 111G, 06L 121 111B, 06L 121 011B, 06K 121 011D, L06L 121 011D, 06L 121 111L, 06L 121 111H, 06L 121 111E, 06L 121 011D, 06K 121 605
Option 2 - PA1246
- Audi: 06L 121 012M, 06L 121 012H, 06L 121 012, 06K 121 011, 06L 121 012K, 06L 121 012A, 06L 121 005A, 06L 121 012L, 06L 121 012E, 06L 121 011B
- VW: 06L 121 012M, 06L 121 012H, 06L 121 012, 06K 121 011, L06L 121 011D, 06L 121 012K, 06L 121 012A, 06L 121 005A, 06L 121 012L, 06L 121 012E, 06L 121 011B
Product Specifications
| Specification | Option 1 - WP83085X | Option 2 - PA1246 |
|---|---|---|
| Housing | With housing | Without housing |
| Sensor | With sensor | Not supplied |
| Operating Mode | Not supplied | mechanical |
| Number of Teeth | 29 | 29 |
| Supplementary Info | with gasket/seal, do not use sealant; with cover; Thermostat fitted in water pump | with gasket/seal, do not use sealant |
| Number of blades/vanes | 5 | 5 |
| Water Pump Pulley Diameter [mm] | 44,9 | 44,9 |
| Impeller Diameter [mm] | 65 | 65 |
| Water pump impeller material | Metal | Metal |
Vehicle Fitment
Same fitment base applies to both options
- Audi - A1 / A1 Sportback / A3 / A3 Sportback / A3 Limousine / A3 Convertible / A4 B8 / A4 B9 / A4 Allroad B8 / A4 Allroad B9 / A5 / A5 Convertible / A5 Sportback / A6 C7 / A6 C8 / A7 / A8 / Q2 / Q3 / Q5 / Q7 / Q8 / TT / TT Roadster selected 1.8 TFSI and 2.0 TFSI / TFSI quattro / Mild Hybrid / e-tron / g-tron applications as supplied above
- Volkswagen - Golf and related MQB applications included in the supplied fitment base where applicable
- Porsche - Macan (95B) 2.0 CNCC / CYNA / CYNB / CYPA / DKNA / DLHB and related supplied applications
Detailed Supplied Fitment Examples
- Audi - A1 (8X1, 8XK) 1.8 TFSI DAJB 2015-2018; S1 quattro CWZA 2014-2018
- Audi - A1 Sportback (8XA, 8XF) 1.8 TFSI DAJB 2015-2018; S1 quattro CWZA 2014-2018
- Audi - A1 Sportback (GBA) 40 TFSI DKZC/CZPC, DNND
- Audi - A3 / A3 Sportback / A3 Limousine / A3 Convertible selected 1.8 TFSI CJSA/CJSB/CNSB and 2.0 TFSI CJXB/CJXC/CJXF/CJXG/CJXD/CZPB/DKZA/DNUE/DJHA/DJHB/DNNA
- Audi - A4 B8 / A4 B8 Avant / A4 Allroad B8 selected 1.8 TFSI CJEB and 2.0 TFSI CNCD / CAHA / CAHB / CAGA / CJCA / CAGB / CJCB / CJCC / CAGC / CNHC / CGLD
- Audi - A4 B9 / A4 B9 Avant selected 2.0 TFSI DBPA / CVKB / DKYA / CYRB / CYMC / CYRC and Mild Hybrid / g-tron supplied applications
- Audi - A5 / A5 Convertible / A5 Sportback selected 1.8 TFSI CABD / CJEB / CJEE / CJED and 2.0 TFSI CDNB / CDNC / CAEB / CNCD / CNCE / CYRB / CYMC / CYRC / CVKB / DKYA / DDWA / DKNA / DMSA / DMSB / DLVB / DPAA / DMTA
- Audi - A6 C7 / A6 C8 selected 1.8 TFSI CYGA and 2.0 TFSI CYPA / CYNB / CYPB / DKNA / DLHA / DLGA / DRYA / DPAA / DMTA
- Audi - A7 Sportback (4GA, 4GF / 4KA) selected 1.8 TFSI CYGA and 2.0 TFSI CYPA / CYNB / CYPB / DKNA / DLHA / DLGA / DRYA / DMTA / DMTC
- Audi - Q2 (GAB, GAG) 2.0 TFSI quattro CZPB/DKZA, SQ2 DNUE/DNFC
- Audi - Q3 (8UB, 8UG / F3B / F3N) selected 2.0 TFSI CULB / CULC / CCTA / DKTA / DNNA / DKTC / DNPA
- Audi - Q5 (8RB / FYB, FYG / FYT) selected 2.0 TFSI CNCB / CDNB / CNCD / CNCE / DAXC / DAXB / DJYA / DAYB / DNTA / DLGA / DRYA / DPUA / DPVA / DMSA
- Audi - Q7 (4MB, 4MG, 4MQ) 2.0 TFSI DMFB / CYRB / CYMC; 45 TFSI quattro DUVA
- Audi - Q8 (4MN, 4MT) 45 TFSI quattro DNEA / DMFA / DUVA / DMTA
- Audi - TT / TT Roadster (FV3, FVP / FV9, FVR) selected 1.8 TFSI CJSA/CJSB and 2.0 TFSI CHHC / CJXG / CJXF / DKZB / DNNB / DNPA / DKTB / DNUF / CNTC
- Porsche - Macan (95B) 2.0 CNCC / CYNA / CYNB / CYPA / DKNA / DLHB and related supplied applications
Warning
It is imperative that silicone sealer is not applied to the water pump prior to instillation. Using silicone sealer will prevent the rubber gaskets from sealing properly and will result in water leaks, thereby voiding the warranty.
It is imperative that silicone sealer is not applied to the water pump prior to instillation. Using silicone sealer will prevent the rubber gaskets from sealing properly and will result in water leaks, thereby voiding the warranty.
Fitment Notes
- Always match by OEM reference number(s) and vehicle details before ordering.
- This is a two-option listing. Choose the correct option before checkout.
- Option 1 is the water pump with housing and sensor. Option 2 is the water pump without housing.
- Both options are supplied with gasket/seal and the supplied note states do not use sealant.
- South Africa nationwide delivery available - contact us for fitment assistance.
Common Questions
Which option do I need?
Choose WP83085X if you need the water pump with housing, sensor, cover, and thermostat fitted in the water pump. Choose PA1246 if you need the water pump without housing.
Do both options fit the same vehicles?
Yes. You supplied the same vehicle application base for both options. Final selection should still be matched by OE number and required housing/sensor configuration.
Can I use silicone sealer when fitting this water pump?
No. The supplied installation warning states that silicone sealer must not be applied, as it will prevent the rubber gaskets from sealing properly and may cause leaks.
What are the main shared specifications?
Both options are supplied with 29 teeth, 5 blades/vanes, 44,9 mm pulley diameter, 65 mm impeller diameter, and a metal impeller.
