Description
Vehicle Compatibility
- Audi A1 1.0 TFSI / Sportback (CHZB, DKLD), 2015-
- Audi A3 1.0 TFSI, 1.2 TFSI, 1.4 TFSI, 1.5 TFSI (CJZA, CMBA, CXSA, CZEA, DADA, DPCA, CHZD), 2013-2021
- Audi A4 1.4 TFSI (CVNA), 2015-
- Audi Q2 1.0 TFSI / 1.4 TFSI / 30 TFSI / 35 TFSI (CHZJ, CZEA, DKRF, DADA, DPCA), 2016-2023
- Audi Q3 1.4 TFSI / 35 TFSI (CHPB, CZDA, DADA, DPCA), 2015-
- VW Polo / Polo Vivo 1.0 TSI, 1.2 TSI, 1.6 i (CHZB, CHZC, DKJA, CWVB, CJZD, CJZC, CBZC), 2014-
- VW Golf 7 / Jetta 6 / Passat 1.2–1.4 TSI (CJZA, CMBA, CZDA, CZEA, CZCA, CHPA, CPTA), 2013-2017
- VW Caddy 1.0 TSI Trendline / 1.6 Crew Bus (CWVA, CHZG), 2015-
- VW Tiguan 1.4 TSI (CZDA, CZEA, CZCA, CZDB), 2016-
- VW Up 1.0 (CHYB), 2015-
- VW T-Cross 1.0 / 1.5 TSI (DKJA, DKRF, DADA, DPCA), 2018-
Specifications

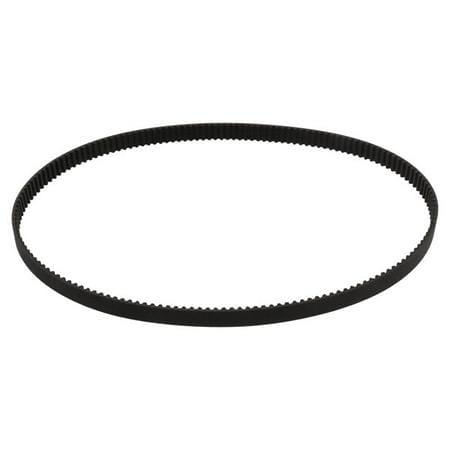

- Part Type: Cambelt / Timing Belt
- SKU: 941060
- Number of Teeth: 163
- Width: 20 mm
- Length: 1141 mm
- OE / Cross Numbers: Audi 04E109119F / G; SEAT 04E109119C / F / G; Škoda 04E109119C / F / G; VW 04E109119C / F / G / L; Ford VWN3CA-6268-AA / 2554777; CUPRA 04E109119F
- Fitment Region: RSA market applications (verify by VIN and engine code)
Features
- High-grade reinforced rubber compound for durability and quiet operation
- Precision tooth profile ensures exact cam/crank synchronization on EA211-series engines
- Meets OE standards for stretch, flexibility, and temperature stability
- Suitable for professional replacement intervals up to OEM specification mileage
Why Buy From Us
- Local South African stock with technical fitment support
- 12-month manufacturer warranty against defects
- Trusted supplier of Audi and VW engine components since 2010
- Fast nationwide delivery covering Cape Town, Johannesburg, Durban, Pretoria and beyond
Installation & Maintenance Tips
- Always replace tensioners and idler pulleys together with the timing belt.
- Check water pump and oil seals for leaks before installation.
- Align timing marks exactly and rotate engine manually two full revolutions to verify tension.
- Use a torque wrench and follow OEM tightening sequence and torque values.
- Recheck belt tension after initial warm-up if specified by manufacturer.
Engine Parts Installation Warning
Timing belts must be installed by a qualified technician. Incorrect fitment can lead to valve or piston damage and void warranty coverage. Ensure all rotating components are free of oil and debris prior to assembly.
Engine Parts Return Policy Warning
Opened or test-fitted timing belts cannot be returned unless incorrectly supplied. All returns must be unused, clean, and sealed in original packaging for eligibility.
