Description
Vehicle Fitment & Part Details

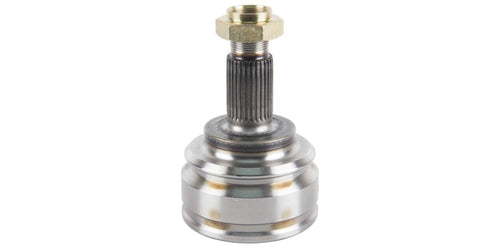

This outer CV joint is listed for the Fiat 128 1.1 (86-06). It is supplied with 20 outer / 20 inner splines, 43.1 mm seal. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.
Key Details
- SKU
- PJ804001
- Component
- Outer CV Joint
- Position
- Outer
- Configuration
- Single
- OEM References
- 5998669, 06X039481190, 5959385, 71781886, 7643642, 5944689, SE025141514B
- Primary Fitment
- Fiat 128 1.1 (86-06)
- Specs
- 20 outer / 20 inner splines, 43.1 mm seal
Listing Highlights
- Listed for selected Fiat applications shown in the fitment table.
- Outer outer CV joint with 20 outer / 20 inner splines, 43.1 mm seal.
Product Specifications
| Specification | Value |
|---|---|
| Inner spline | 20 |
| Outer spline | 20 |
| Seal diameter | 43.1 mm |
| Total diameter | 81 mm |
| Total length | 151 mm |
| Groove position | Outer Groove |
Vehicle Fitment
Includes 2 supplied applications covering Fiat. Use the full table below to confirm model, engine option and year range before ordering.
| Make | Model / Application | Year Range |
|---|---|---|
| Fiat | 128 1.1 (128 A.000), 1.3 (128 A1.000, 160 A3.000) | 86-06 |
| Fiat | Uno 1.0 (156 A2.000, 156 A2.246), 1.1 (160 A3.000), 1.4 (160 A1.046, 160 A1.048, 146 C1.000) - Non-Turbo | 90-05 |
Fitment Notes
- Always match the listed vehicle details before ordering. Verify VIN/engine.
Compatibility Verification Notes
- Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.
- Match the supplied dimensions to your original part, including the 20 outer / 20 inner splines, 43.1 mm seal.
- This outer CV joint is supplied as a single. Confirm the type, position and quantity you require before ordering.
- Fitment data may vary by production date, market, import history and engine variant.
- This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.
Common Questions
Will this outer CV joint fit my Fiat 128 1.1?
This part (PJ804001) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.
Is this sold as a single unit or a set?
This listing is sold as a single. Confirm the quantity and type you require before ordering.
How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, spline counts and dimensions, and original part details before ordering. Verify VIN/engine.
