Description

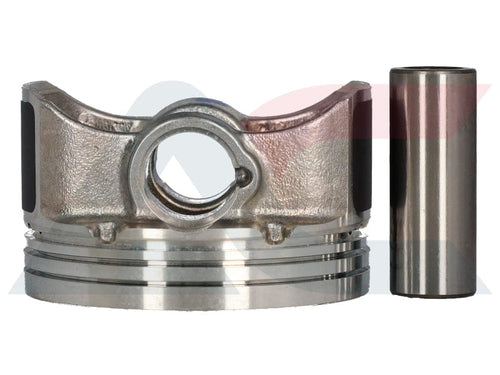

Piston Set STD / +0.50 / +1.00 - Suzuki K14B (PTSU407303G)
These pistons are supplied in three size options for Suzuki K14B applications. The customer must select the correct size (STD, +0.50 mm, or +1.00 mm) to match the engine’s bore size. Supplied without piston rings.
Vehicle Compatibility
- Suzuki Baleno 1.4 (K14B) – 2017–2022
- Suzuki Ciaz 1.4 (K14B) – 2015–
- Suzuki Ertiga 1.4 (K14B) – 2014–
- Suzuki Swift 1.4 (K14B) – 2011–
- Toyota Starlet 1.4 (K14B) – 2020–2022
Size Options (Customer Must Choose Correct Size)
- STD (73.00 mm bore) – SKU: PTSU407303G/0-0
- Oversize +0.50 mm (73.50 mm bore) – SKU: PTSU407303G/0-50
- Oversize +1.00 mm (74.00 mm bore) – SKU: PTSU407303G/1-00
Specifications (Applies to All Sizes Unless Noted)
- Compression Height: 28,30 mm
- Length: 43,30 mm
- Recess Depth 1: 3,80 mm
- Bolt Ø: 18,00 mm
- Supplied: Without piston rings
Per-Size Bore Specifications
- PTSU407303G/0-0 (STD): Cyl.Bore: 73,00 mm, Standard Size [STD]
- PTSU407303G/0-50: Cyl.Bore: 73,50 mm, Oversize: 0,50 mm
- PTSU407303G/1-00: Cyl.Bore: 74,00 mm, Oversize: 1,00 mm
Important Engine Parts Notice:
Engine parts must be matched exactly before fitment. Pistons are size-specific and must correspond to the measured bore size of your engine. Do not rely on vehicle model alone. Compare your old piston and confirm bore measurements with your machinist before ordering. This listing is supplied without piston rings. Returns on engine parts may be refused if items have been test-fitted, installed, or handled in a manner that affects resale condition.
