Description
Vehicle Fitment & Part Details

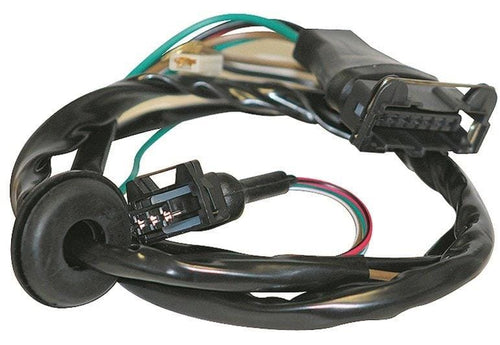

This ignition TCI wiring harness (MAP-100047, for TP900B, OE BAT971131) fits the VW Golf 1, Golf 2, Golf Citi (all variants), Jetta 1, Jetta 2, and Giti Fox petrol range. The harness connects the ignition TCI unit to the ignition coil, distributor, and supply circuit with pre-terminated factory connectors and rubber grommet. Confirm compatibility by matching the listed fitment details and connector shape to the harness being replaced.
Key Details
- SKU
- MAP-100047
- Component
- Ignition TCI Wiring Harness
- For Article Number
- TP900B (pairs with ignition TCI unit)
- OEM References
- VW: BAT971131
Key Benefits
- Pre-terminated connectors - no splicing or loose terminals required.
- Includes rubber grommet for clean firewall or housing pass-through.
- Direct replacement for the original Golf / Jetta TCI loom.
Vehicle Fitment
| Model | Variant | Engine Code | Years |
|---|---|---|---|
| Golf 1 | 1800 GTi | DX EV | 1983-1984 |
| Golf 2 | 1300 CL | GY | 1984-1987 |
| Golf 2 | 1600 CSL | HM | 1984-1992 |
| Golf 2 | 1800 CSX / GTX | HV | 1984-1992 |
| Golf 2 | 1800 GTi | EV DX / KR | 1984-1992 |
| Golf 2 | 2000 GTi | AAL | 1990-1992 |
| Golf Citi | 1.3 / Chico / Shuttle / Sonic | GY | 1986-2002 |
| Golf Citi | 1.6 / Blues / Deco / Lux / Shuttle / Sonic | HM | 1985-2001 |
| Golf Citi | 1800 | HV | 1988-1995 |
| Golf Citi | 1800 CTi | DX | 1991-1995 |
| Jetta 1 | 1300 GL | GF / ET | 1980-1984 |
| Jetta 1 | 1600 GL / GLS / GLi | EM | 1983-1985 |
| Jetta 2 | 1600 CSL | HM | 1985-1992 |
| Jetta 2 | 1800 CSX / CLX | HV | 1985-1992 |
| Jetta 2 | 1800 CLi | EV / KR | 1985-1992 |
| Giti Fox | - | - | - |
Fitment Notes
- Always match OEM reference number and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
- This harness pairs with ignition TCI unit TP900B - it does not include the TCI module itself.
- Verify the connector shapes and wire colours on the removed harness match before installation.
Installation / Use / Maintenance Tips
- Disconnect the battery before removing the old harness.
- Note the routing and any cable tie or clip positions before removal - route the new harness clear of exhaust, moving parts, and sharp edges.
- Inspect the TCI unit, ignition coil, distributor cap, rotor, and plugs at the same time.
- After installation, verify the vehicle starts cleanly, idles smoothly, and has no misfires at cruise.
Common Questions
Will this harness fit my Golf or Jetta?
This part (MAP-100047) is listed for the Golf 1, Golf 2, Golf Citi, Jetta 1, Jetta 2, and Giti Fox fitments shown on this page. Confirm by matching the connector shapes to the removed harness.
Does this include the TCI ignition module?
No - this listing is for the wiring harness only. The harness pairs with ignition TCI unit TP900B, which is a separate part.
What's included?
The wiring harness with pre-terminated connectors and rubber grommet.
