Description
Vehicle Compatibility
- Ford EcoSport JK8 1.5 Ti-VCT (XZJF) 2018–2023 (DOHC Dragon)
- Ford EcoSport JK8 1.0 EcoBoost (M1JC / M1JJ / M1JU) 2017–2023 (DOHC)
- Ford EcoSport JK8 1.5 TDCi (UGJM / XUJH) 2018–2023 (SOHC)

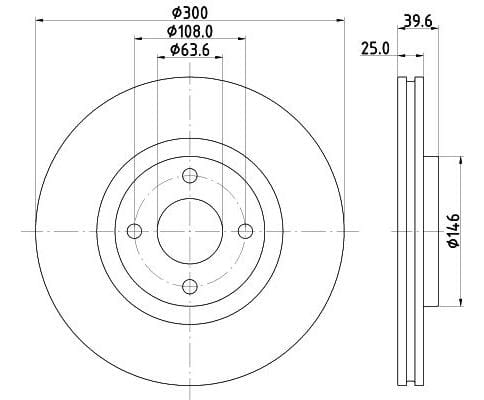

Fitment Note: This listing is for the front, vented disc with dimensions 300x25mm and height 39.6mm (06/2017-). If you are unsure, confirm with VIN or measure your existing disc before ordering.
Specifications
- Fitting Position: Front Axle
- Brake Disc Type: Vented
- Outer Diameter: 300 mm
- Brake Disc Thickness: 25 mm
- Height: 39.6 mm
Important: PCD, hole count, and hub centering diameter were not supplied—please verify these against your existing disc or VIN data before checkout.
Features
- Vented design supports heat dissipation for consistent braking under load
- Precision replacement disc matched to the provided dimensions for the listed EcoSport JK8 applications
- Ideal when replacing worn, scored, or warped front brake discs (inspection required)
Why Buy From Us
- South African stock with nationwide delivery
- 12-month warranty (terms apply)
- Fitment support available—share your VIN and engine code to confirm before ordering
Installation & Maintenance Tips
- Replace brake discs in pairs (left and right) to maintain balanced braking
- Inspect and, if needed, replace brake pads to prevent uneven bedding and noise
- Clean the hub face thoroughly and torque wheel bolts to manufacturer spec to reduce runout and vibration
- Bed-in the brakes correctly after fitment to stabilise friction and reduce judder
