Description
Vehicle Fitment & Part Details

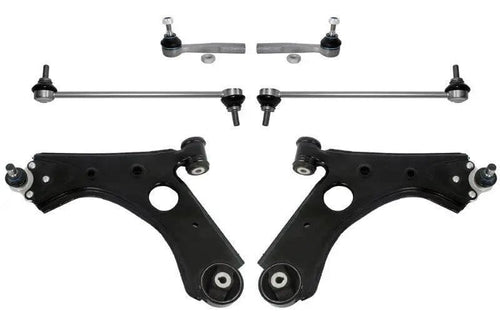

This front control arm repair kit (MAP-100963) is listed for the Fiat 500L range, covering 1.4, 1.4 MPI, and 1.6D M-JET variants from 2012 onward. The kit includes left and right control arms, two stabiliser links, and a tie rod end set. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- MAP-100963
- Component
- Control Arm Repair Kit
- Position
- Front
- Configuration
- Kit
- Brand
- Aplus
- Primary Fitment
- Fiat 500L (2012–)
- Included
- 23714AP (Control Arm Left), 23715AP (Control Arm Right), 20921AP × 2 (Stabiliser Link), 34583AP (Tie Rod End Set)
Key Benefits
- Five OEM cross-reference numbers listed for verification before ordering.
- Kit includes control arms, stabiliser links, and tie rod end set for a comprehensive front suspension service.
OEM Reference Numbers
- 52008282-K
- 50531823
- 51885660
- 77366165K
- 51885737
Product Specifications
| Specification | Value |
|---|---|
| Stabiliser Link Length | 296.5 mm |
| Stabiliser Link Thread Size 1 | M10×1.25 |
| Stabiliser Link Thread Size 2 | M10×1.25 |
| Tie Rod End Cone Size 1 | 14.8 mm |
| Tie Rod End Cone Size 2 | 11.7 mm |
| Tie Rod End Length | 135 mm |
| Tie Rod End External Thread | M10×1.5 mm |
| Tie Rod End Internal Thread | M14×1.5 mm |
Vehicle Fitment
| Model | Engine | kW | Year |
|---|---|---|---|
| Fiat 500L 1.4 | 940B7.000 | 72 | 2013– |
| Fiat 500L 1.4 MPI | 843A1.000 | 72 | 2012– |
| Fiat 500L 1.6D M-JET | 199B5.000 | 79.5 | 2013– |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
- All models listed are Fiat 500L variants. Confirm your engine code matches before ordering.
Installation / Use / Maintenance Tips
- Inspect related arms, links, boots, and mounting hardware before fitting the new parts.
- Clean mounting surfaces and use the correct orientation during assembly.
- Tighten bonded bushes at normal ride height where applicable.
- Check wheel alignment after installation where suspension or steering geometry may be affected.
Common Questions
Will this front control arm repair kit fit my Fiat 500L?
This part (MAP-100963) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the OEM Reference Numbers section above. Match at least one to your original part before ordering.
What is included?
23714AP (Control Arm Left), 23715AP (Control Arm Right), 20921AP × 2 (Stabiliser Link), 34583AP (Tie Rod End Set).
What brand is this part?
This listing is for Aplus front control arm repair kit.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
