Description
Vehicle Compatibility
- Toyota Land Cruiser 3F Petrol 1983 to 1992
- Toyota Land Cruiser 4.5 1FZ-F 1992 to 2000
- Toyota Land Cruiser Diesel ADE236 1986 to 1990
- Toyota Land Cruiser 79 4.2 1HZ 2010 to
- Toyota Land Cruiser 80 4.5 1FZ-FE 1992 to 1997

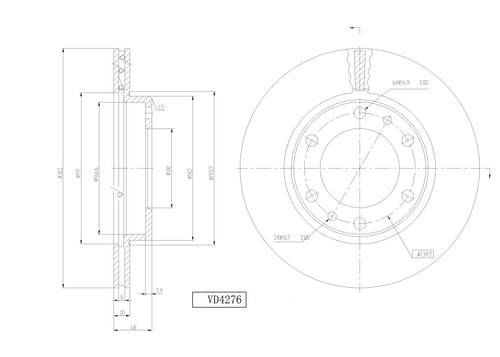

Specifications
- Fitting Position: Front Axle
- Outer Diameter: 302 mm
- Height: 48 mm
- Bolt Hole Circle Ø: 139.7 mm
- Centering Diameter: 100 mm
- Number of Holes: 6
- Brake Disc Type: Vented
- Disc Thickness: 20 mm
- Surface: Oiled
- OE Numbers:
- 43512-35170
- 43512-35220
- 43512-60011
- 43512-60040
- 43512-60041
- 43512-60060
- 43512-60100
- 43512-69005
- 43512-69015
- 43512-69016
- 43512-69040
- SKU: DR6276
Features
- Precision vented design for improved heat dissipation
- Oiled anti-corrosion surface for extended service life
- Machined for OE-level fitment and balanced performance
- Suitable for both petrol and diesel Land Cruiser variants
Why Buy From Us
- Local South African stock for fast nationwide delivery
- 12-month warranty on all brake components
- Expert fitment advice available from our support team
Installation & Maintenance Tips
- Always replace brake discs in pairs for balanced braking performance.
- Ensure hub and caliper surfaces are clean before installation.
- Use a torque wrench to secure bolts to manufacturer specifications.
- After fitting, perform gentle bedding-in over the first 200 km for optimal results.
- Check and replace brake pads if worn or uneven.
